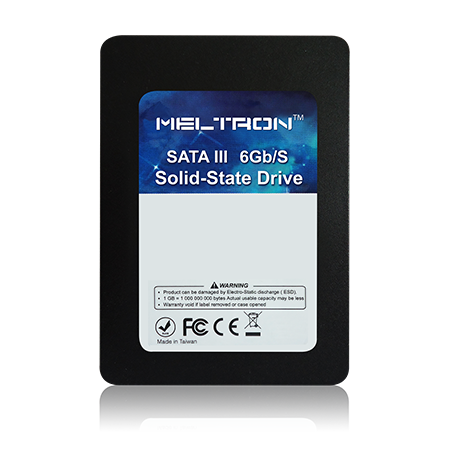

2.5 inch SATA SSD

Specification

Model No. ST-2511 SD-2512 ST-2517
Status Active Active Active
NAND Type 3D TLC NAND 112L 3D TLC NAND
Capacity 32GB – 1TB 120GB – 15360GB 64GB – 2TB
Interface SATA 3 (6Gb/s)
Form Factor 2.5 inch
Power Connector 15 pin SATA connector for DC 5V
Data Connector 7 pin SATA connector
Power Requirement DC 5V2.0A (Max)
Max Channel 2 8 2
Extended DRAM DRAM-Less DDR3L / DDR4 DRAM-Less
Security NO TCG / OPAL TCG OPAL 2.0
Sequential
Read/Write ( up to )		 550/465MB/s 550/530MB/s 550/510MB/s
Random
Read/Write ( up to )		 65K/82K IOPS 98K/90K IOPS 95K/85K IOPS
MTBF >2,000,000 hours > 1,500,000 >2,500,000 hours
Dimension
(LxWxH/mm)		 100 x 69.85 x 7
Op. Temperature 0°C~70°C /-40°C~85°C
Features
  • Write protect and Data Destroy (Optional)
  • Thermal Throttling
  • Data Loss Protection End to End Data Protection
  • Built-in LDPC + RAID ECC functionality
  • Over-provision & TRIM Command
  • Supports S.M.A.R.T function
  • Write protect and Data Destroy/ Military Erase
  • Thermal Throttling
  • Self Encrypting Function
  • Data Loss Protection End to End Data Protection
  • Built-in LDPC + RAID ECC functionality
  • Supports S.M.A.R.T function
  • HW PLP with Super Capacitors / Tantalum Capacitors
  • DRAM supported
  • AES 256-bit Hardware Self Encryption
  • TCG Opal 2.0
  • Write protect and Data Destroy
  • Thermal Throttling
  • Data Loss Protection End to End Data Protection
  • Built-in LDPC + RAID ECC functionality
  • Over-provision & TRIM Command
  • Supports S.M.A.R.T function
Application
