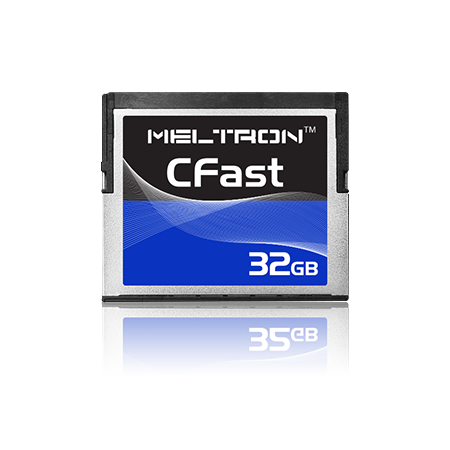

CFast SSD

Specification

Model No. FT-711x FT-717x
Status Active Active
NAND Type 2D MLC/SLC / 3D TLC/ 3D pSLC 3D TLC/ 3D pSLC
Capacity MLC: 32GB – 512GB
SLC: 8GB -32GB
3D TLC: 32GB -512GB
3D pSLC: 16GB -64GB		 3D TLC: 64GB -1024GB
3D pSLC: 32GB – 128GB
Interface SATA 3.2 (6Gb/s)
Form Factor CFast
Connector 7 + 17 pin female connector
Max Channel 2 2
Extended DRAM DRAM-Less
Security N/A AES/ TCG Opal
Sequential
Read/Write ( up to )		 550/455MB/s 550 /510 MB/s
4K Random Read/
Write ( up to )		 65K/82K IOPS 95K/85K IOPS
Dimension
(LxWxH/mm)		 36.4 x 42.8 x 3.3
Op. Temperature 0°C~70°C /-40°C~85°C
ECC Engine Low-Density Parity-Check (LDPC) Code Low-Density Parity-Check (LDPC) Code
Thermal Sensor Yes Yes
MTBF >2,000,000 >3,000,000
Features
  • Secure erase and write protect
  • Thermal Throttling
  • Power Loss Protection ( Optional )
  • Built-in LDPC + RAID ECC (Error Correction Code) functionality
  • Support S.M.A.R.T. and TRIM commands
  • H/W Write protect ( Optional )
  • Secure erase and write protect
  • TCG OPAL
  • Thermal Throttling
  • Power Loss Protection ( Optional )
  • Built-in LDPC + RAID ECC (Error Correction Code) functionality
  • Support S.M.A.R.T. and TRIM commands
Application
